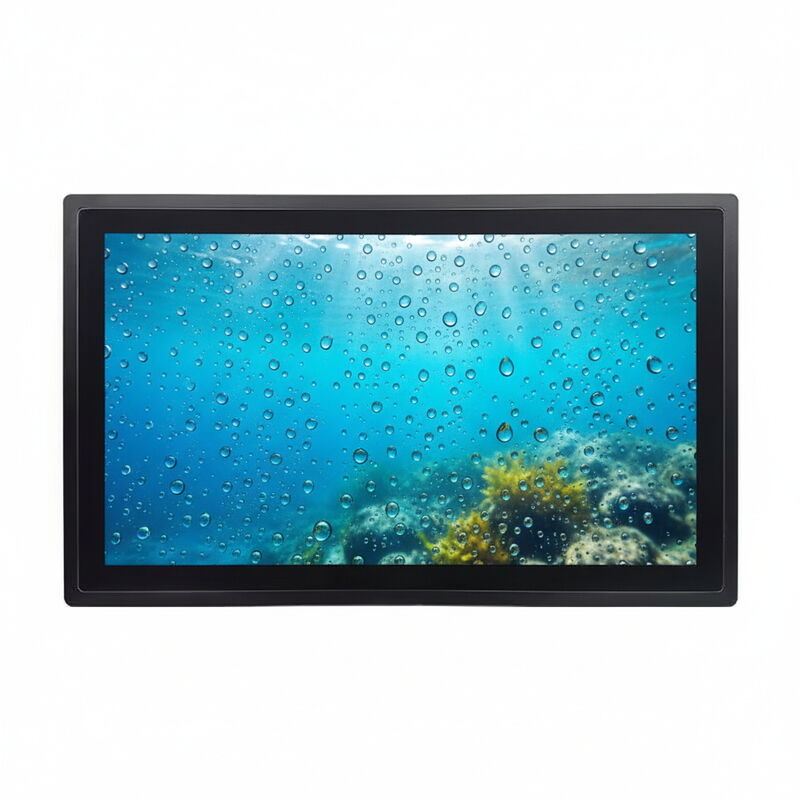

23.8" Industrial Panel PC IP67 Waterproof Sunlight Readable Touchscreen Computer 1200 Nits

23.8" Industrial Panel PC IP67 Waterproof Sunlight Readable Touchscreen Computer  1200 Nits


Superior Display Technology The industrial-grade LCD panel delivers exceptional 1200 cd/m² luminance, ensuring optimal readability even under direct sunlight exposure. Enhanced with optical bonding technology and a 2mm chemically strengthened tempered glass cover (7H hardness), the display features anti-glare treatment that minimizes reflections while maintaining over 80% light transmission. The full viewing angle specification of 89° in all directions guarantees consistent image quality regardless of viewing position.

Robust Environmental Protection Certified to IP67 ingress protection standards, this panel PC offers comprehensive defense against dust infiltration and water immersion. The precision-engineered aluminum alloy frame incorporates sandblasting oxidation with anti-UV and anti-discoloration treatment, while specialized waterproof tape sealing between front bezel and rear housing ensures maintainability without compromising protection integrity. All connectivity ports feature IP67-rated waterproof connectors, extending environmental resilience across the entire system.

Industrial-Grade Performance Powered by an Intel Core i5-6300U processor with quad-core architecture (2.4 GHz base, 3.0 GHz turbo), the system operates entirely fanless through passive thermal management via integrated aluminum heat sink. The configuration includes 16GB DDR3 memory and 256GB SSD storage, with expansion options available. Integrated Intel HD graphics and comprehensive I/O connectivity—including dual USB ports, Gigabit Ethernet with Wake-on-LAN capability, HDMI output, and dual RS232 serial interfaces—ensure versatile integration possibilities.

Extended Operational Capability Engineered for continuous 24/7 operation across an exceptional temperature range of -20°C to 70°C, this system employs industrial-grade components throughout. The wide voltage DC input (9-36V) with included waterproof power adapter accommodates various installation scenarios, while optional wireless connectivity (Wi-Fi, Bluetooth, 4G) enhances deployment flexibility. VESA mounting compatibility (75/100mm) facilitates straightforward installation in diverse industrial settings.

Specification


Applications

It is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, truck, food Industry, security Turnstile, chemical manufacturing, tennis courts, sports ground and other outdoor applications.


Advantages

1. Working temperature range is -10°C to 60°C.

2. Industrial LCD panel is wide viewing angle, high nits and true color.

3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications.

4. High performance motherboard, 7x24 continuous operation.

5. Symmetric design can be utillized in portrait mode with style.

6. Heat sink in back case great for heat dissipation and beatiful appearance.

7. Working voltage is wide range 9-36V, suitable for various applications.

Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
